Product Description
339/DW-B(FPV Dual 5.8GHz Channel Auto searching )
Specific Monitor by LILLIPUT for Flying Camera System.
Application for Aerial & Outdoor Photography.
Strongly recommend for aerial enthusiast & professional photographer.
339/DW (with dual 5.8Ghz receivers, which cover 4 bands and total 32 channels, Channel auto searching)
Features:
Excellent Display & Design
it features attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast that providing excellent viewing experience.
Channel Auto Searching
It supports 32-channel totally, press"AUTO" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.
PiP Mode
339/DW owns dual antennas, which can receive two different video signal channels, and technically overlayed the video signals directly on the same monitor. Also multiple Picture-in-Picture(PiP) modes can be selected.
4-hour Timer & Alert Indicator
Creatively integrated timer function to control the flight time and avoid of flight accident when operating the UAV. Timer supports up to 4-hour countdown, and it will alert when 1 minute left.
Built-in Battery & Battery Level
Built-in 2600mAh battery, support up to 3-4 hours working time, and providing battery level indicator.
Wireless signal sensitivity indicator
Real-time display the 5.8GHz wireless signal sensitivity of main image. It's more convenient for users to monitor the video signal status of UAV.
- Built-in AV receiver support PAL / NTSC switch automatically, anti-black, anti-blue, anti-flash.
- Simulation of composite video AV inputs, aerial camera connection.
- 5.8Ghz frequency 4 Bands and total 32 channels.
- 100 to 2000 meters wireless distance.
- Built-in 2600mAh high capacity rechargeable battery, make power cables free.
- Snow screen, no more"blue" screen.
| Wireless Receiver Channel (Mhz) | ||||||||
| | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band1 | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band2 | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band3 | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band4 | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
339/DW TIPS:
Real-time display the 5.8GHz wireless signal sensitivity of main image. It's more convenient for users to monitor the video signal status of UAV.
For example:
(ANT1) 5800MHz - (ANT2) 5790MHz = 10MHz < 20MHz √
(ANT1) 5828MHz - (ANT2) 5790MHz = 38MHz > 20MHz ×
| Display | |
| Size | 7″ IPS, LED backlit |
| Resolution | 1280×800 |
| Brightness | 400cd/㎡ |
| Aspect ratio | 16:10 |
| Contrast | 800:1 |
| Viewing Angle | 178°/178°(H/V) |

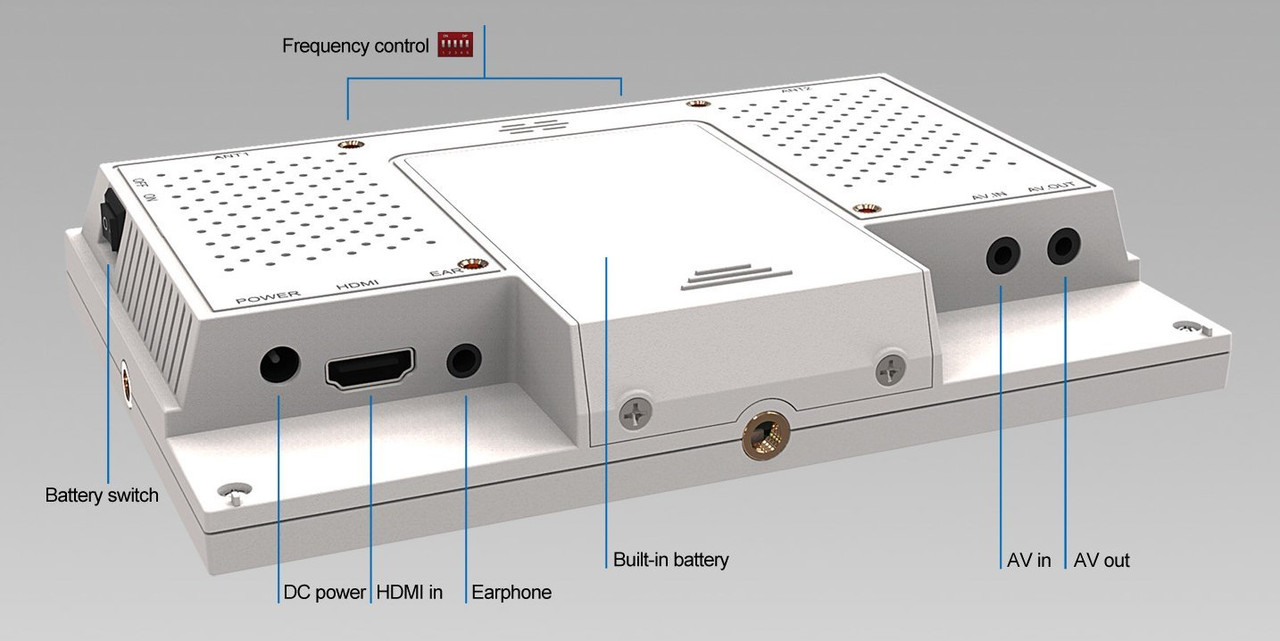

| Input | |
| AV | 1 |
| HDMI | 1 |
| Wireless 5.8GHz AV | 2 (339/DW), 1 (339/W) |
| Output | |
| AV | 1 |
| AUDIO | |
| Speaker | 1 |
| Earphone | 1 |
| Power | |
| Current | 1300mA |
| Input Voltage | DC 7-24V |
| Battery | Built-in 2600mAh battery |
| Battery Plate (optiional)) | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
| Power Consumption | ≤18W |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |
| Dimension(LWD) | 185×126×30 mm |
| Weight | 385g |
Dimensions
| DIMENSION | Dimension(LWD) | 185×126×30 mm |
|---|---|---|
| Color | Black | |
| Weight | 385g |
| Display | |
| Size | 7″ IPS, LED backlit |
| Resolution | 1280×800 |
| Brightness | 400cd/㎡ |
| Aspect ratio | 16:10 |
| Contrast | 800:1 |
| Viewing Angle | 178°/178°(H/V) |
| Input | |
| AV | 1 |
| HDMI | 1 |
| Wireless 5.8GHz AV | 2 (339/DW), 1 (339/W) |
| Output | |
| AV | 1 |
| AUDIO | |
| Speaker | 1 |
| Earphone | 1 |
| Power | |
| Current | 1300mA |
| Input Voltage | DC 7-24V |
| Battery | Built-in 2600mAh battery |
| Battery Plate (optiional)) | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
| Power Consumption | ≤18W |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |
| Dimension(LWD) | 185×126×30 mm |
| Weight | 385g |
