Product Description
A11 10.1" FHD SDI / HDMI Broadcast Monitor
| Display | |
| Size | 10.1” |
| Resolution | 1920 x 1200 |
| Brightness | 320cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1000:1 |
| Viewing Angle | 175°/175°(H/V) |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| VGA | 1 |
| Video Loop Output | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤13W |
| DC In | DC 7-24V |

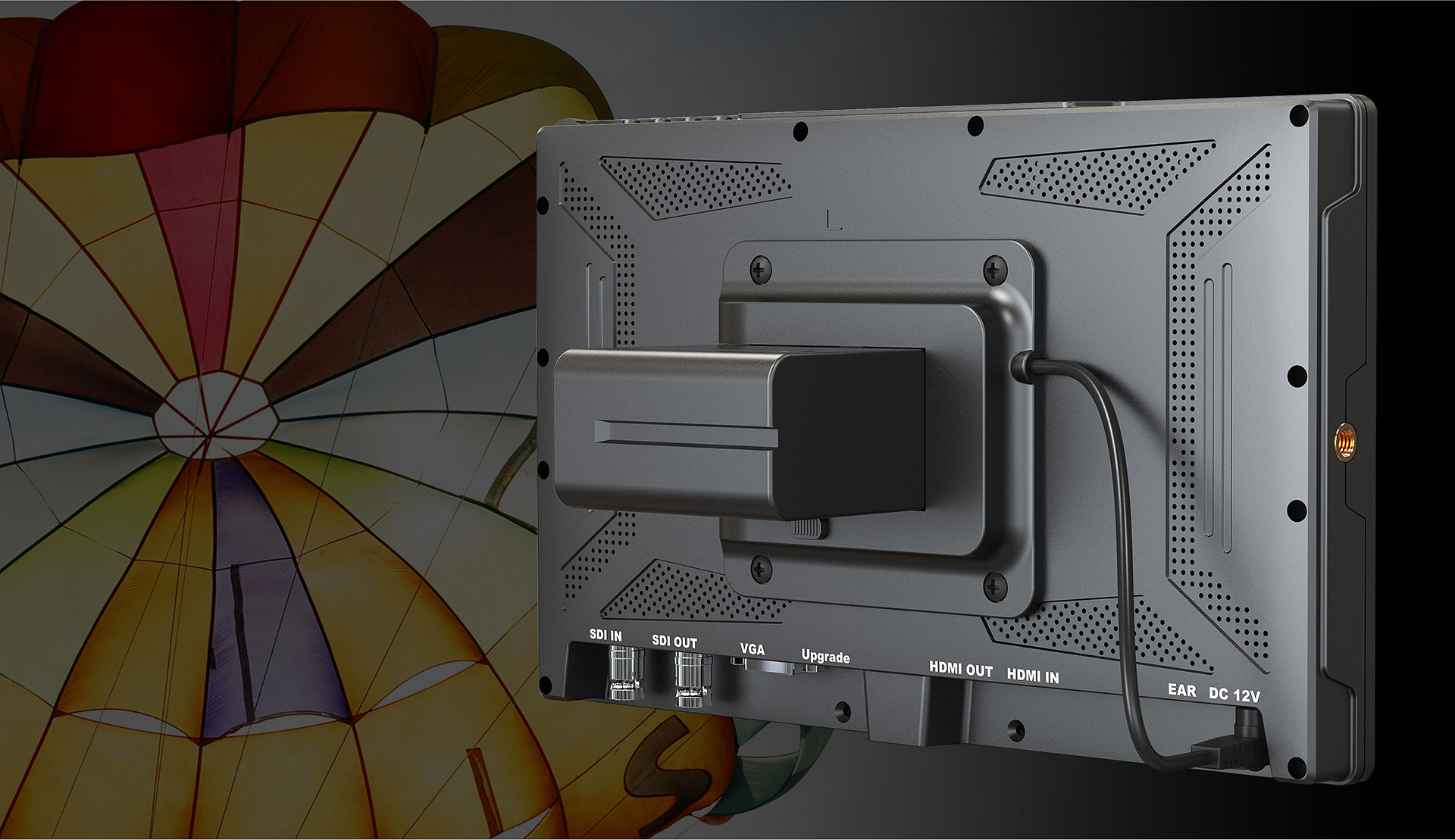

| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |

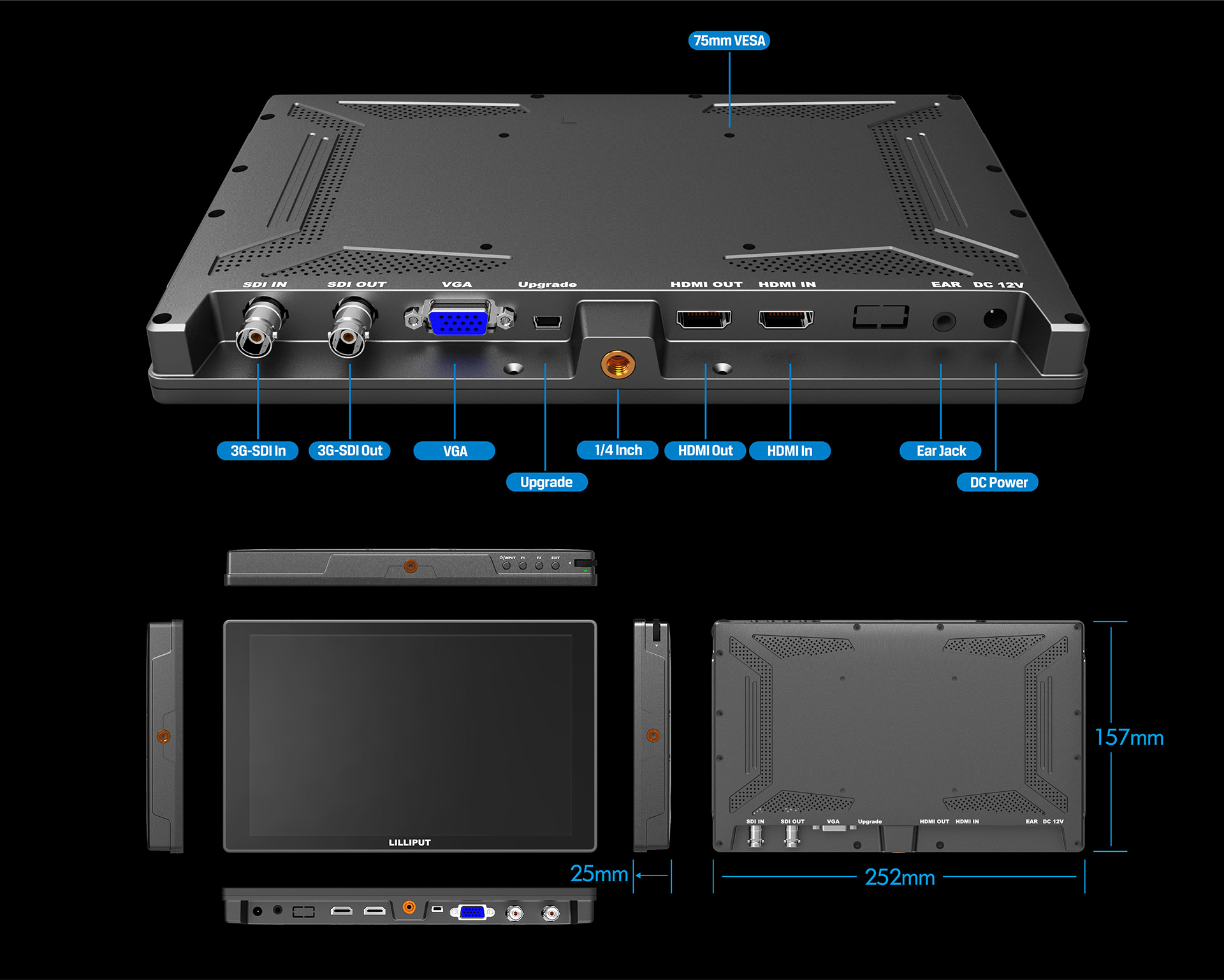

| Dimension(LWD) | 252×157×25mm |
| Weight | 550g |
ACCESSORIES
| Display | |
| Size | 10.1” |
| Resolution | 1920 x 1200 |
| Brightness | 320cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1000:1 |
| Viewing Angle | 175°/175°(H/V) |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| VGA | 1 |
| Video Loop Output | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤13W |
| DC In | DC 7-24V |
| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 252×157×25mm |
| Weight | 550g |
Product Videos
Custom Field
Screen Size 10.1 inches
Resolution 1920x1200
Screen IPS
Aspect Ratio 16:10
Housing Material Metal
Brightness 320 cd/m^2
Inputs 3G-SDI, HDMI, VGA
