Product Description

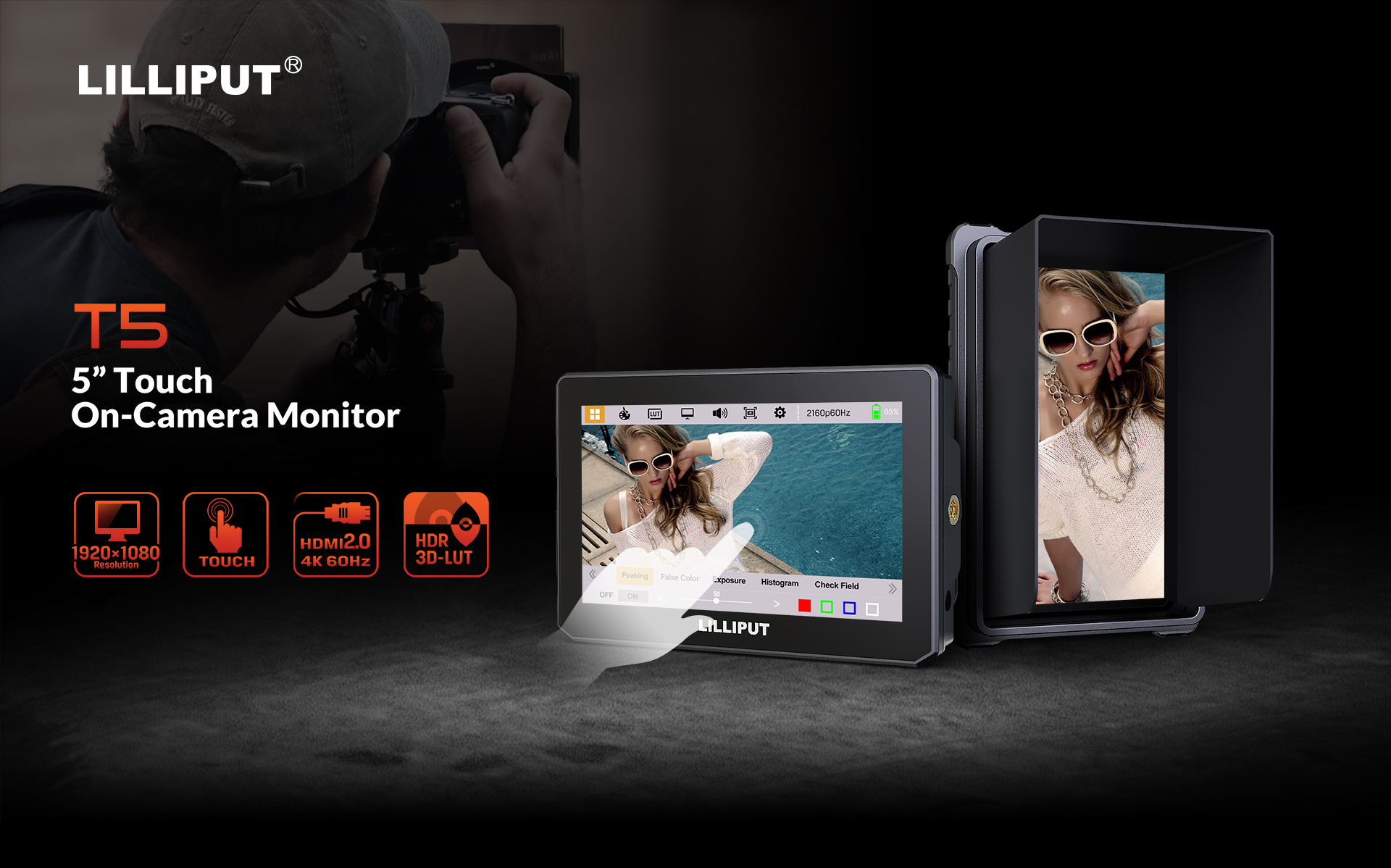

T5 5" Touch On-Camera HDMI Monitor
| Display | |
| Size | 5” IPS |
| Resolution | 1920 x 1080 |
| Brightness | 400cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| HDMI | 1×HDMI 2.0 |
| Supported Formats | |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| Audio In/Out | |
| HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit |
| Power | |
| Power Consumption | ≤6W / ≤17W (DC 8V power output in operation) |
| Input voltage | DC 7-24V |
| Compatible batteries | Canon LP-E6 & Sony F-series |
| Power Output | DC 8V |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~60℃ |
| Other | |
| Dimension(LWD) | 132×86×18.5mm |
| Weight | 200g |
| Display | |
| Size | 5” IPS |
| Resolution | 1920 x 1080 |
| Brightness | 400cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| HDMI | 1×HDMI 2.0 |
| Supported Formats | |
| HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| Audio In/Out | |
| HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit |
| Power | |
| Power Consumption | ≤6W / ≤17W (DC 8V power output in operation) |
| Input voltage | DC 7-24V |
| Compatible batteries | Canon LP-E6 & Sony F-series |
| Power Output | DC 8V |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~60℃ |
| Other | |
| Dimension(LWD) | 132×86×18.5mm |
| Weight | 200g |
Product Videos
Custom Field
Screen Size 5 inches
Resolution 1920x1080
Screen IPS
Aspect Ratio 16:9
Housing Material Metal
Brightness 400 cd/m^2
Inputs HDMI
