Product Description
TK-1500/C/T 15 inch industrial open frame touch monitor

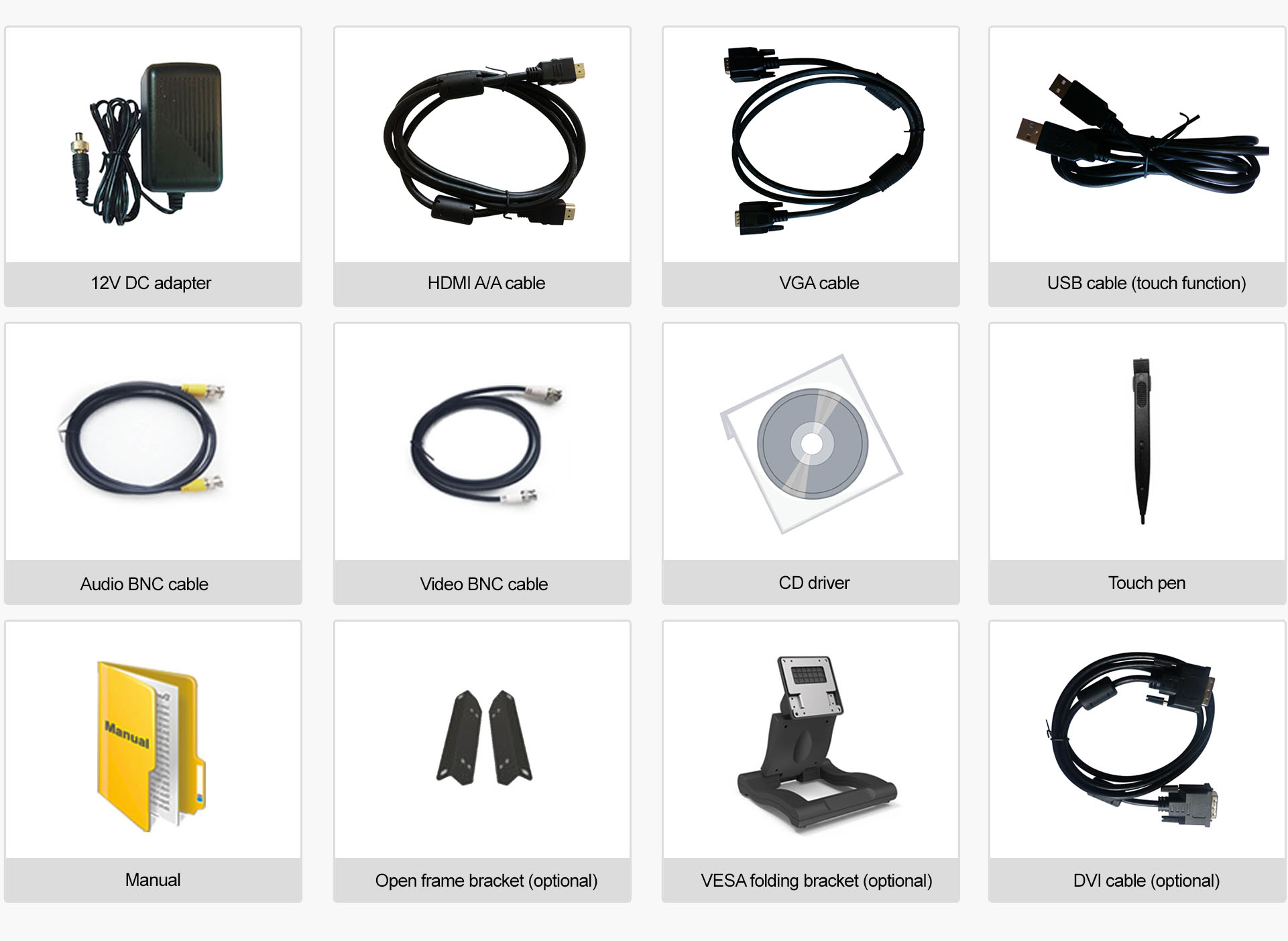

ACCESSORIES
| Display | |
| Touch panel | 5-wire resistive |
| Size | 15” |
| Resolution | 1024 x 768 |
| Brightness | 1000cd/m² |
| Aspect ratio | 4:3 |
| Contrast | 1500:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| HDMI | 1 |
| DVI | 1 |
| VGA | 1 |
| Composite | 1 |
| Supported In Formats | |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
| Audio Out | |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤15W |
| DC In | DC 12V |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |
| Dimension(LWD) | 402×289×45.5mm, 400×279×43.5mm (open frame) |
| Weight | 3.2kg |
| Display | |
| Touch panel | 5-wire resistive |
| Size | 15” |
| Resolution | 1024 x 768 |
| Brightness | 1000cd/m² |
| Aspect ratio | 4:3 |
| Contrast | 1500:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| HDMI | 1 |
| DVI | 1 |
| VGA | 1 |
| Composite | 1 |
| Supported In Formats | |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
| Audio Out | |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤15W |
| DC In | DC 12V |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |
| Dimension(LWD) | 402×289×45.5mm, 400×279×43.5mm (open frame) |
| Weight | 3.2kg |
Product Videos
Custom Field
Screen Size 15 inches
Resolution 1024x768
Screen LED
Aspect Ratio 4:3
Housing Material Metal
Brightness 1000 cd/m^2
Inputs AV, VGA, HDMI, DVI
