Product Description

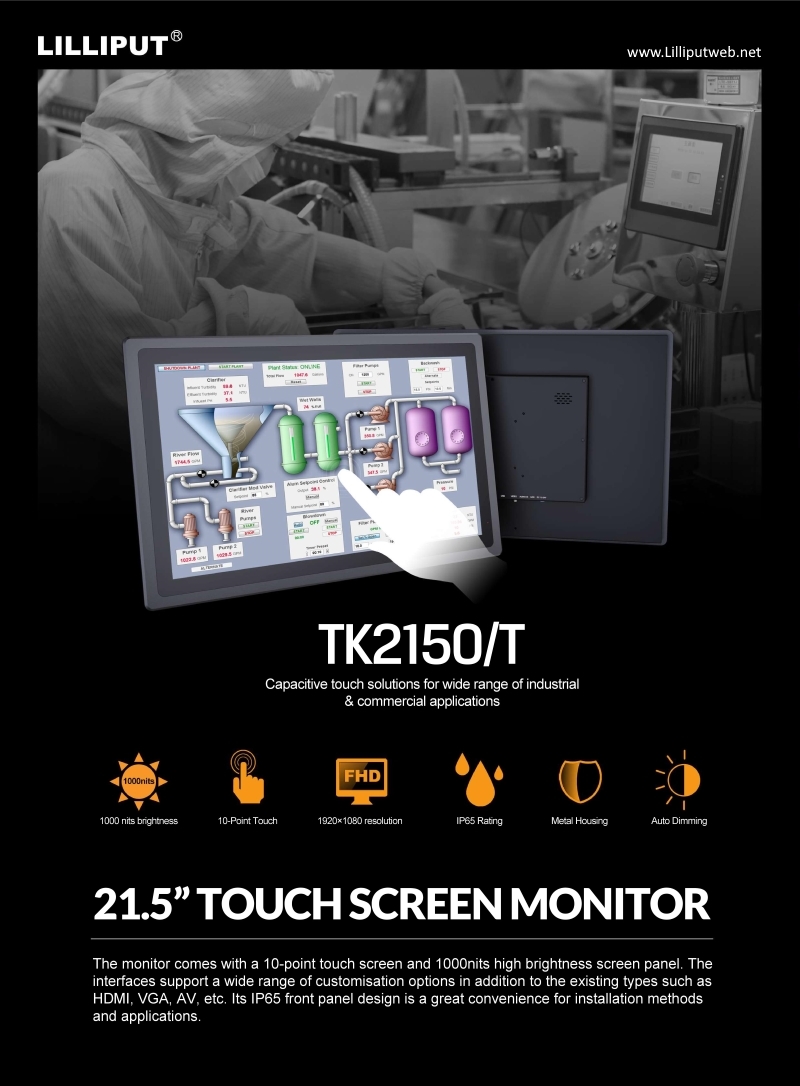

TK2150/T 21.5 inch touch screen monitor
isplay | Touch Screen | 10-points capacitive touch |
Panel | 21.5” LCD | |
Physical Resolution | 1920×1080 | |
Aspect Ratio | 16:09 | |
Brightness | 1000 nits | |
Contrast | 1000:01:00 | |
Viewing Angle | 178°/ 178°(H/V) | |
Input | HDMI | 1 × HDMI 1.4b |
VGA | 1 | |
AV | 1 | |
SUPPORTED | HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, |
FORMATS | 1080i 50/60, 720p 50/60… | |
Audio In/Out | Speaker | 2 |
HDMI | 2ch | |
Ear Jack | 3.5mm – 2ch 48kHz 24-bit | |
Power | Input Voltage | DC 12-24V |
Power Consumption | ≤37W (15V) | |
Environment | Operating Temperature | 0°C~50°C |
Storage Temperature | -20°C~60°C | |
Water-proof | Front Panel IP x5 | |
Dust-proof | Front Panel IP 6x | |
Dimension | Dimension(LWD) | 556mm × 344.5mm × 48.2mm |
Weight | 5.99kg |
