Product Description

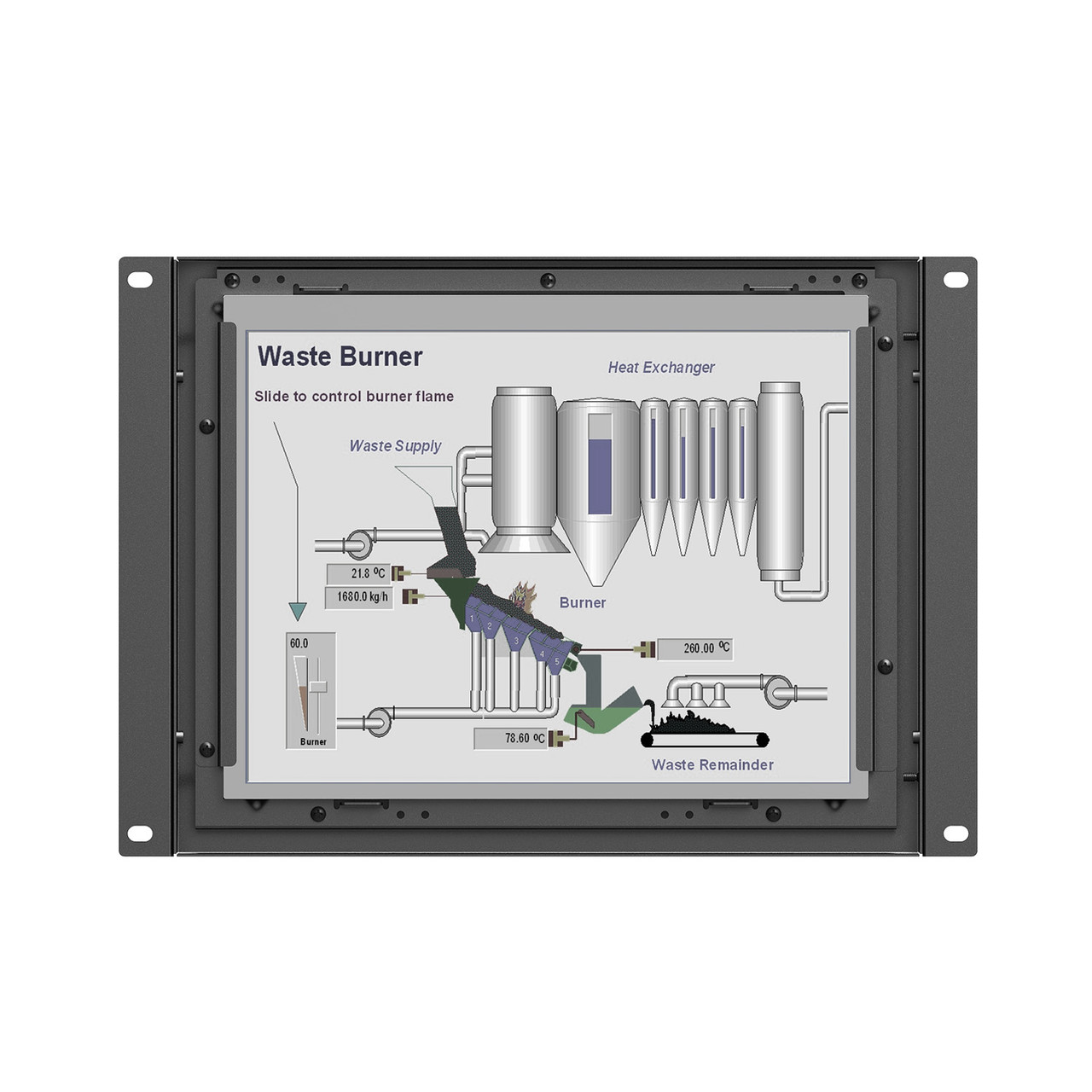

TK970-NP/C/T 9.7 inch industrial open frame touch monitor
ACCESSORIES
| Display | |
| Touch panel | 5-wire resistive |
| Size | 9.7” |
| Resolution | 1024 x 768 |
| Brightness | 350cd/m² |
| Aspect ratio | 4:3 |
| Contrast | 900:1 |
| Viewing Angle | 174°/174°(H/V) |
| Video Input | |
| HDMI | 1 |
| DVI | 1 |
| VGA | 1 |
| Composite | 1 |
| Supported In Formats | |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
| Audio Out | |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤10W |
| DC In | DC 7-24V |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |
| Dimension(LWD) | 279.6×203.5×37.6mm, 279.6×195.5×36.1mm(open frame) |
| Weight | 1600g / 1300g(open frame) |
| Display | |
| Touch panel | 5-wire resistive |
| Size | 9.7” |
| Resolution | 1024 x 768 |
| Brightness | 350cd/m² |
| Aspect ratio | 4:3 |
| Contrast | 900:1 |
| Viewing Angle | 174°/174°(H/V) |
| Video Input | |
| HDMI | 1 |
| DVI | 1 |
| VGA | 1 |
| Composite | 1 |
| Supported In Formats | |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
| Audio Out | |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤10W |
| DC In | DC 7-24V |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Other | |
| Dimension(LWD) | 279.6×203.5×37.6mm, 279.6×195.5×36.1mm(open frame) |
| Weight | 1600g / 1300g(open frame) |
Product Videos
Custom Field
Screen Size 9.7 inches
Resolution 1024x768
Screen LED
Aspect Ratio 4:3
Housing Material Metal
Brightness 350 cd/m^2
Inputs AV, VGA, HDMI, DVI
