    SG-12G 12G-SDI Signal Generator

    Lilliput

    MSRP:
    Now: $5,499.00
    (You save )
    (No reviews yet) Write a Review

    Availability:
    Y
    Screen Size:
    7 inches
    Resolution:
    1280×800
    Screen:
    IPS
    Aspect Ratio:
    16:10
    Housing Material:
    Metal
    Brightness:
    400 cd/m^2
    Inputs:
    REF, USB

    Save to Wishlist
    • Create New Wish List

    Share This Article

    • Overview
    • Specifications
    • Reviews

    Product Description

    SG-12G 12G-SDI Signal Generator

     "



    "



    Pattern Measurement

    To test color temperature and grayscale of monitor with various types of patterns, such as color bar, monochrome display, and customized pictures.

    Preset & importable patterns

    Custom: Free to create any color picture, based on two different color space -- RGB or YCbCr.

    Picture: Built-in plenty of preset patterns, and user-definable pictures imported to the generator to meet various test requirements.


     "



    Signal Compatibility

    Supports SD, HD, 3G, 6G and 12G-SDI signals; SDI and Fiber signals up to 4K 60Hz. SDI conversion among of different link structures, SQ and 2SI.

    Mode Options: Selection among 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SD-SDI signal formats.

    Raster Options: Different resolutions options corresponding to different Modes.

    Refresh Options: Different Raster rates corresponding to different Modes & Raster.

    Sampling Options: Different GBR & YCbCr sampling rates based on the above options.

    "



    Audio Monitoring



    A comprehensive audio monitoring tool supports up to 16 channels embedded AES/EBU audio, with -60dB to 0dB range. And a 20 to 20000 frequency.

    Channel Options: 16-channel SDI audio ranges from CH0 to CH15 for optional.

    Switch Options: Off, On, All Off and All On are optional for the 16-channel audio switch.

    Phase Options: Options among of 0, 90, 180 and 270 for phase.

    Frequency Options: Freq options can be customized from 20 to 20000 by users.

    DB(-) Options : Freq options can be customized from -60bB to 0dB by users.

    "

    "

    Ring Type: Ring type for optional under Overlay function.

    Frame Counter Type: Frame counter type for optional under Overlay function.

    Character Type: Character type for optional under Overlay function. Text input will be displayed based on the specific X and Y axis that can be preset.

    Ref In: Ref In used for frame synchronization to ensure input & output frames simultaneously.

    "

    Time Code: Supports Linear time code(LTC) and Vertical interval time code(VITC)

    "

    Ring Type: Ring type for optional under Overlay function

    "



    FN (Shortcut)

    User-definable functions as shortcuts with great convenience.

    Function Shortcut: Supports more than one hundred shortcut functions.For time-saving and high efficiency when testing, users can manage shortcut functions through Add, Del, Replace and Output operations.

    "



    12G-SFP OUT: Support 12G-SDI fiber signals (Optional Module).

    12G-SDI output×2: It supports single/dual/quad-link signal outputs, and backward compatible with 6G-SDI, 3G-SDI, HD-SDI & SD-SDI signals.

    3G-SDI output×2: It supports 3G-SDI signal outputs, and backward compatiblewith HD-SDI & SD-SDI signals.

    USB: USB used for external devices, such as USB flash disk, mouse and keyboard, etc.







    "





    "



    BM150-4K / 4KS / 12G

    BM230-4K / 4KS / 12G

    BM280-4K / 4KS / 12G

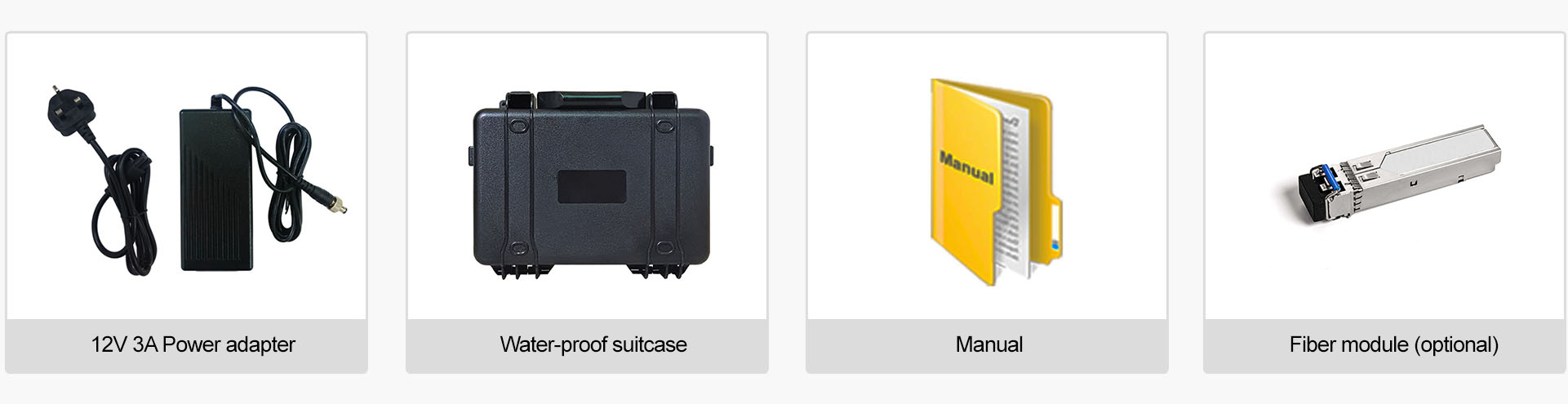

    Accessories

    Display
    Size 7”
    Resolution 1280 x 800
    Brightness 400cd/m²
    Aspect ratio 16:10
    Contrast 800:1
    Viewing Angle 178°/178°(H/V)
    Video Output (Uncompressed true 10-bit or 8-bit 422)
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    FIBER 1(optional module)
    Video Input
    REF 1
    USB 2
    Supported Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    SFP 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    Audio Out (48kHz PCM Audio)
    SDI 12ch 48kHz 24-bit
    Remote Control
    Com 1
    LAN 1
    Power
    Operating power ≤27W
    DC In DC 10-15V
    Built-in Battery 5000mAh
    Environment
    Operating Temperature -10℃~60℃
    Storage Temperature -30℃~70℃
    Other
    Dimension(LWD) 264×169×42mm
    Weight 3kg
    Display
    Size 7”
    Resolution 1280 x 800
    Brightness 400cd/m²
    Aspect ratio 16:10
    Contrast 800:1
    Viewing Angle 178°/178°(H/V)
    Video Output (Uncompressed true 10-bit or 8-bit 422)
    SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
    FIBER 1(optional module)
    Video Input
    REF 1
    USB 2
    Supported Out Formats
    SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    SFP 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
    Audio Out (48kHz PCM Audio)
    SDI 12ch 48kHz 24-bit
    Remote Control
    Com 1
    LAN 1
    Power
    Operating power ≤27W
    DC In DC 10-15V
    Built-in Battery 5000mAh
    Environment
    Operating Temperature -10℃~60℃
    Storage Temperature -30℃~70℃
    Other
    Dimension(LWD) 264×169×42mm
    Weight 3kg

    Product Videos

    Custom Field

    Screen Size 7 inches
    Resolution 1280×800
    Screen IPS
    Aspect Ratio 16:10
    Housing Material Metal
    Brightness 400 cd/m^2
    Inputs REF, USB
