Product Description

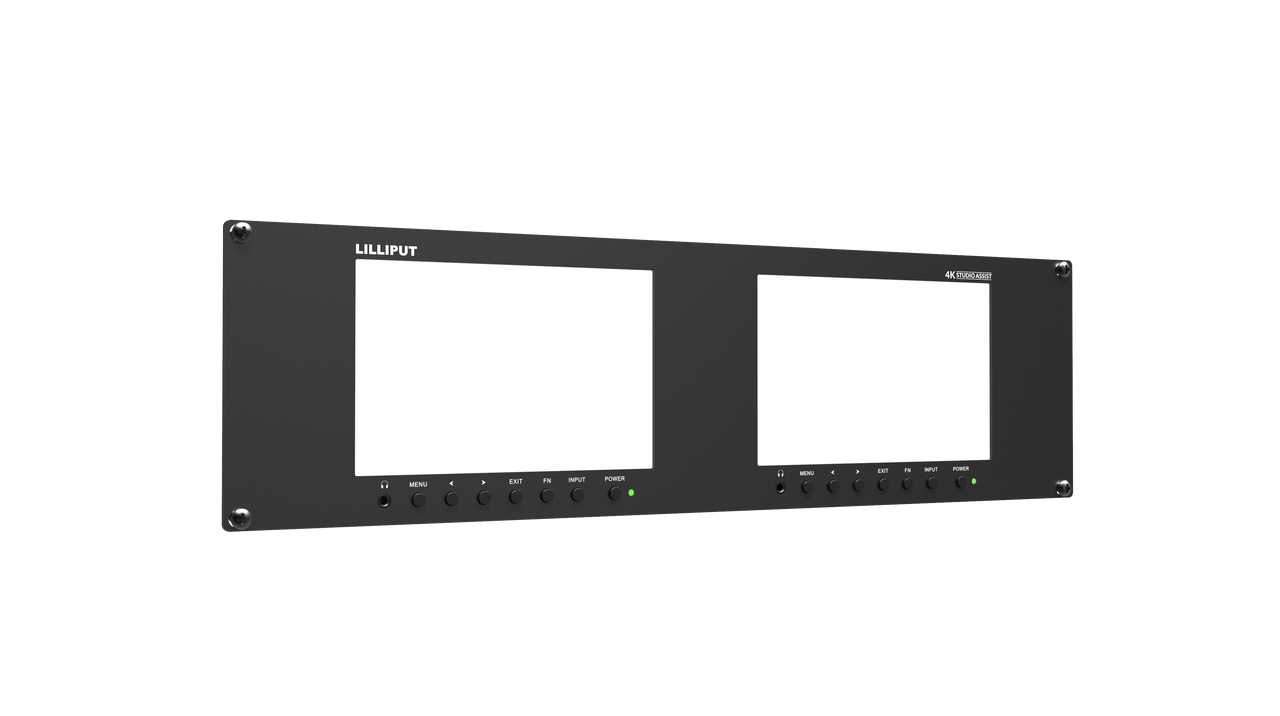

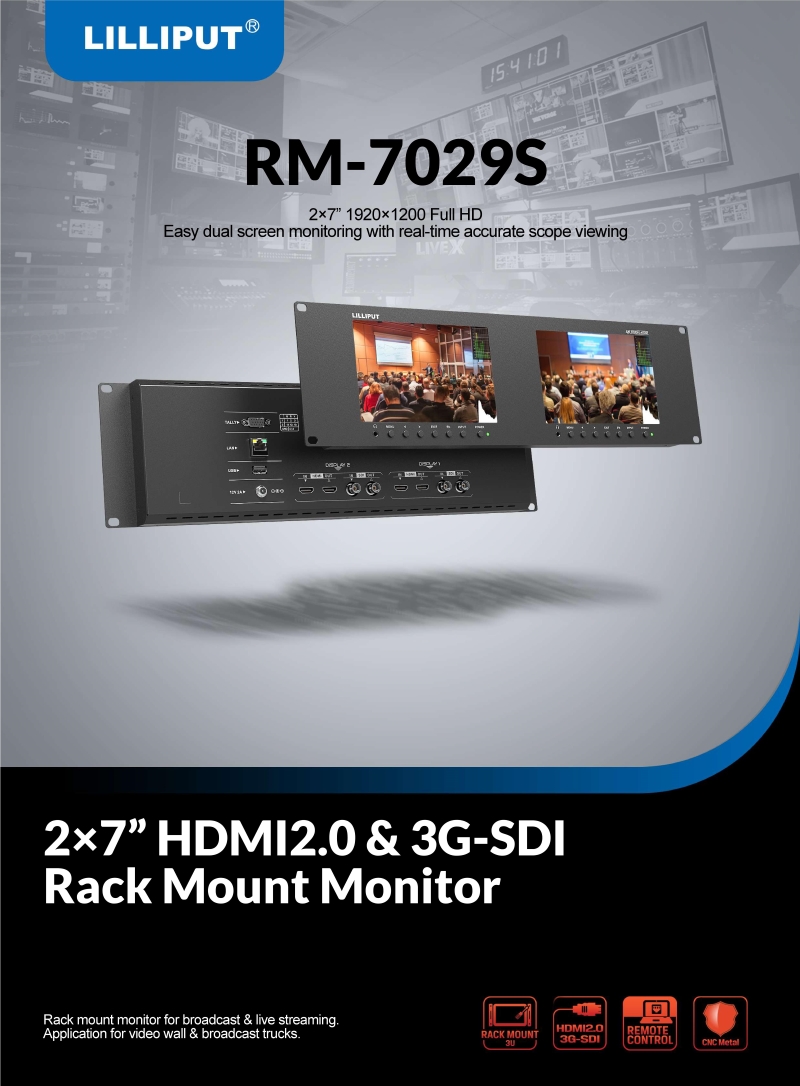

RM-7029S-HDR Dual 7 inch 3RU rackmount SDI monitor with HDR
Display | |
Size | Dual 7″ LED backlit |
Resolution | 1920×1200 |
Brightness | 400cd/m² |
Aspect ratio | 16:10 |
Contrast | 2000:1 |
Viewing Angle | 160°/160°(H/V) |
Supported Log Formats | Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User… |
LUT Support | 3D-LUT (.cube format) |
Video Input | |
SDI | 2×3G |
HDMI | 2×HDMI(supports up to 4K 60Hz) |
LAN | 1 |
Video Loop Output | |
SDI | 2×3G-SDI |
HDMI | 2×HDMI 2.0 (supports up to 4K 60Hz) |
Supported In / Out Formats | |
SDI | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50… |
HDMI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50… |
Audio In/Out | |
Speaker | - |
Ear Phone Slot | 2 |
Power | |
Current | 1.5A |
DC In | DC 10-24V |
Power Consumption | ≤16W |
Environment | |
Operating Temperature | 0℃~50℃ |
Storage Temperature | -20℃~70℃ |
Other | |
Dimension(LWD) | 480×131.6×29.3mm |
Weight | 2.2kg |
