Product Description
TK1330-NP/C 13.3 inch industrial montior
TK1330-NP/C(NO-TOUCH )
Excellent Display & Capacitive touch panel
Attractive13.3 inch multi-touch capacitive IPS panel, which features with 1920×1080 Full HD resolution,
170°wide viewing angles, high contrast and brightness, providing satisfied viewing experience.10-point
capacitive touch has better operation experience.
Metal Housing
Wiredrawing aluminum front shell with iron back shell, which make a good protection
from damage, and good-looking appearance, also extend the lifetime of monitor.
Application Industries
Metal housing design which can be applied in different professional fields. For instance,
Human-machine interface, entertainment, retail, supermarket, mall, advertising player,
CCTV monitoring, numerical control machine and intelligent industrial control system, etc.

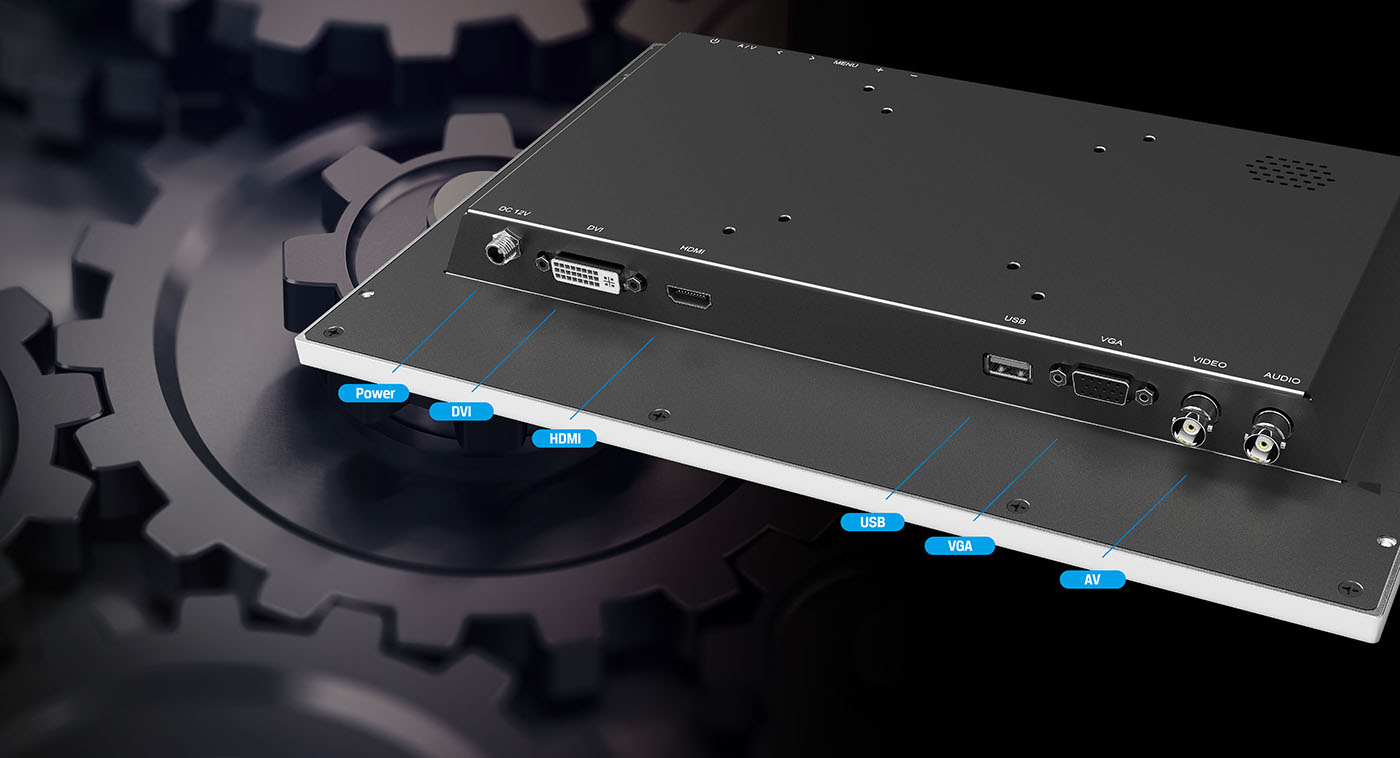

Interfaces & Wide Voltage Power
Coming with HDMI, DVI, VGA & AV input signals to meet different needs of various professional
display applications.. Built-in high level components to support 12 to 24V power supply voltage,
allows to be used in more places.

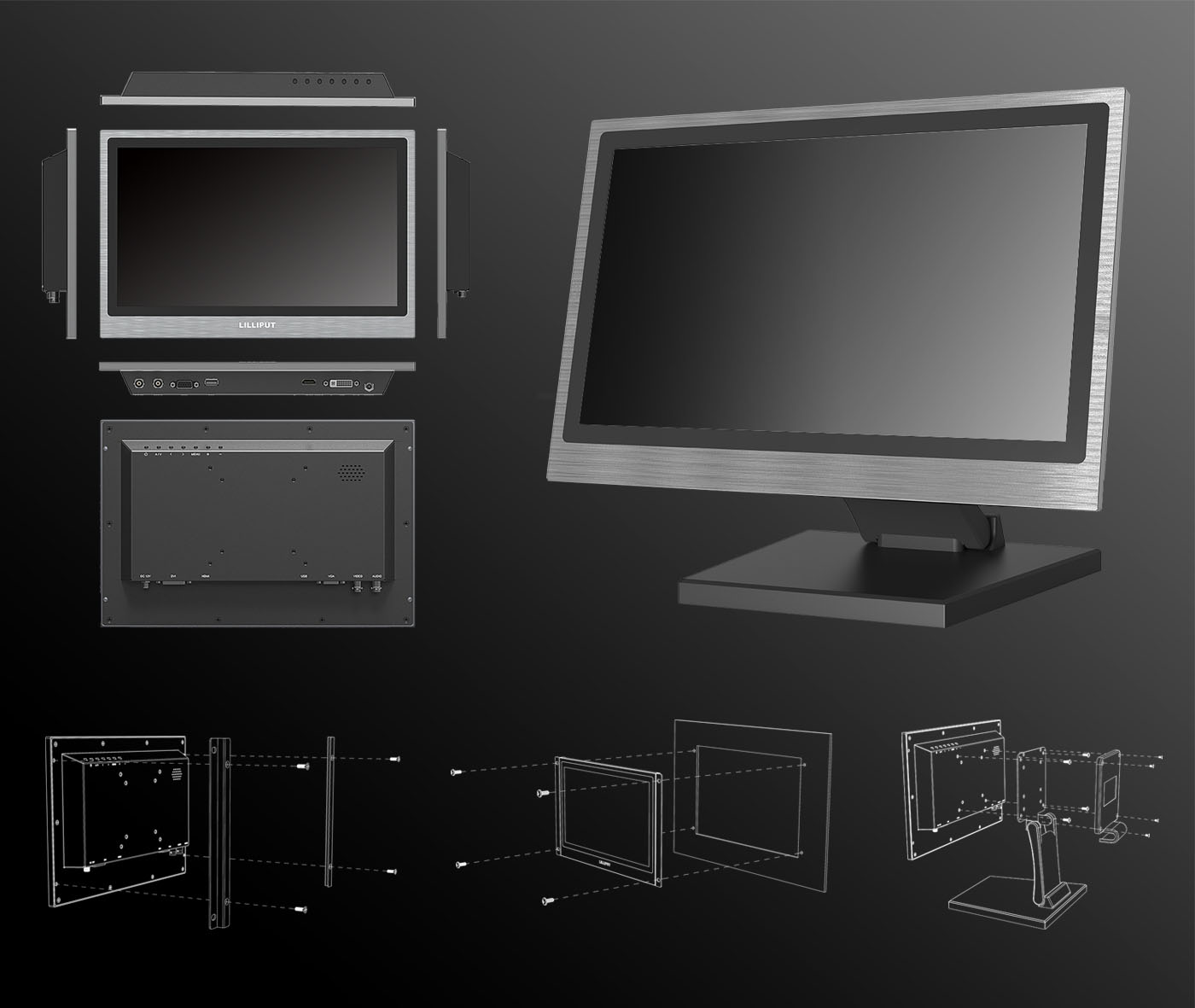

Structure & Mounts Methods
Supports rear/wall mounts with integrated brackets, and VESA 75mm/100mm standard mounting, etc.
A metal housing design with slim and firm features making efficient integration into embedded or other
professional display applications.Having a variety of mounting usage in plenty of fields, such as rear,
desktop and roof mounts.
| Display | |
| Size | 13.3” |
| Resolution | 1920 x 1080 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 800:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| HDMI | 1 |
| DVI | 1 |
| VGA | 1 |
| Composite | 1 |
| Supported In Formats | |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
| Audio Out | |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤8W |
| DC In | DC 7-24V |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Other | |
| Dimension(LWD) | 333.5×220×34.5mm |
| Weight | 1.9kg |
Dimensions
| DIMENSION | Dimension(LWD) | 333.5×166.6×34.5mm |
|---|---|---|
| Mounting Method | VESA 75mm / 100mm, fixed bracket mount | |
| Weight | 1.9kg |
| Display | |
| Size | 13.3” |
| Resolution | 1920 x 1080 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 800:1 |
| Viewing Angle | 170°/170°(H/V) |
| Video Input | |
| HDMI | 1 |
| DVI | 1 |
| VGA | 1 |
| Composite | 1 |
| Supported In Formats | |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 50/60 |
| Audio Out | |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤8W |
| DC In | DC 7-24V |
| Environment | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Other | |
| Dimension(LWD) | 333.5×220×34.5mm |
| Weight | 1.9kg |
